Heavy Oil Fired Steam Boiler: High-Efficiency Solutions by ZOZEN Boiler

Introduction
A heavy oil fired steam boiler is a specialized industrial heating system designed to utilize heavy fuel oil (HFO) for steam generation. These boilers are widely used in industries requiring high-temperature steam, such as petrochemical plants, shipyards, and large-scale manufacturing facilities. With rising fuel costs and environmental regulations, modern heavy oil fired steam boilers must balance efficiency, reliability, and low emissions. This article explores the key features of heavy oil fired steam boilers, introduces ZOZEN Boiler’s advanced product series, and details the innovative technologies that set ZOZEN apart in heavy oil boiler manufacturing.

Part 1: Heavy Oil Fired Steam Boiler Overview
What Is a Heavy Oil Fired Steam Boiler?
A heavy oil fired steam boiler burns viscous residual oils to produce steam for industrial processes. These systems are engineered to handle the challenges of high-viscosity fuels while maintaining operational efficiency.
Key Features:
 High Thermal Efficiency – Optimized combustion and heat recovery systems
 Fuel Flexibility – Compatible with heavy oil, waste oils and etc.
 Robust Construction – Resistant to high-temperature corrosion and thermal stress
 Low Emissions – Advanced burners reduce NOx and particulate matter
Applications:
Petrochemical refineries
Power generation in remote locations
Industrial processing (textile, food, paper)

The heavy oil fired steam boiler remains vital for industries needing cost-effective, high-capacity steam generation despite fluctuating fuel markets.

Part 2: ZOZEN’s Heavy Oil Fired Steam Boiler Series introduction and advantages
ZOZEN Boiler offers two advanced heavy oil fired steam boiler series, engineered for diverse industrial demands:

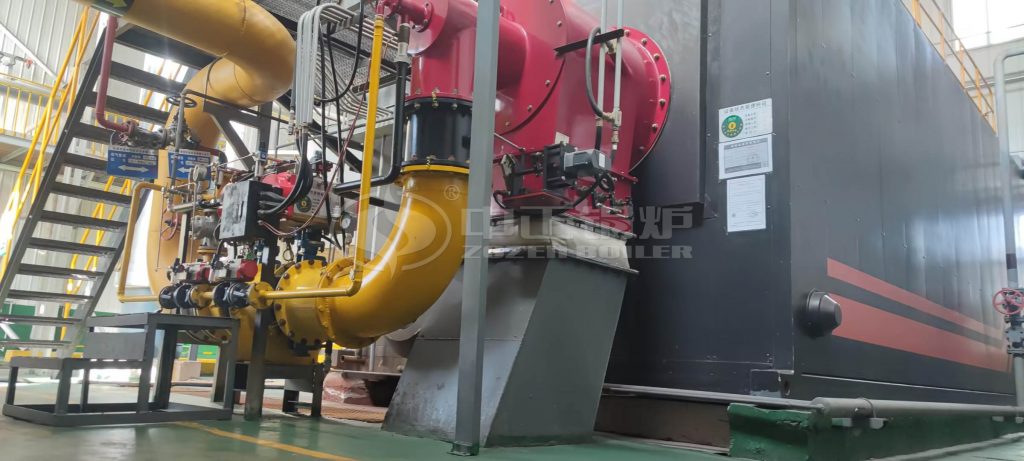

WNS series oil-fire steam boiler

Introduction
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Parameters:
Thermal capacity：1-20 t/h
Working pressure：0.7-2 MPa
Available fuel：Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries
Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital, etc.
Advantages:
Sufficient capacity
Double layer insulation design
Smoke chamber door adopts hinge structure and window type.
Automatic control
Boiler paint film can be at least as thick as 150um.
Add economizer and condenser
Overall design of body wiring to shorten installation time and cost
Threaded smoke tube to strengthen heat transfer to improve boiler heat efficiency.
Corrugated furnace to enhance the disturbance of flue gas and increase the strength and elasticity of the furnace.

SZS series gas-fired (oil-fired) steam boiler
SZS series boiler is double drums, longitudinal arranged, “D” type chamber structure. Furnace is on right side and convection tube bundle is on the left, super heater is arranged at convection tube bundle. The body is fixed on the basement by middle and both end flexible supports and make the boiler to expand horizontally to sideways. Around furnace is membrane wall. Furnace and tube bundle is totally separated by the membrane wall at the left side of the furnace. The back part of bundle is sparse shift structure, front part is aligned structure. Smoke from furnace outlet enters re-burning chamber, bundle area, and then from left front part enters spiral fin coil economizer and condenser, finally discharged to atmosphere through chimney.

Parameters:
Thermal capacity：2-110 t/h
Working pressure：1.25-5.3 MPa
Outlet temperature：194-540 °C
Available fuel：Natural gas, coke oven gas, blast furnace gas, carbon black tail gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries：
Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital, etc.
Advantages:
Manhole are arranged on both sides of the boiler drums, and inspection doors are arranged at the rear of the boiler,which is convenient for users to inspect and clean the boiler inside and outside.
The paint film can be at least as thick as 150um,it effectively prevents seawater corrosion during transportation.After sandblasting, 4 layers paint and 1 layer varnish are sprayed with high quality paint and automobile painting technology
D-type arrangement with full membrane wall structure
Good quality alumina silicate fiber and fire clay insulation are used. The boiler body temperature is controlled below 45℃。
The boiler has explosion door and flame detector for safe and reliable operation
The boiler adopts full-membrance wall combustion chamber, with pressurized firing without smoke mixture and pollution.
Compared to conventional heavy oil fired steam boilers, ZOZEN’s solutions offer:
 Higher fuel efficiency
 Longer equipment lifespan
 Compliance with ASME，CE，GB standards

Conclusion
ZOZEN Boiler’s heavy oil fired steam boilers represent the pinnacle of modern boiler technology, combining robust engineering with intelligent operation. Designed for industries requiring reliable, high-capacity steam generation, these boilers deliver unmatched efficiency, durability, and environmental performance.
Why Choose ZOZEN?
Customized solutions for heavy oil challenges
Industry-leading thermal efficiency
Global service network with 24/7 support
Contact ZOZEN today to explore how our heavy oil fired steam boilers can optimize your industrial operations.
