Basic Information
Capacity: 700 – 14000 KW
Pressure: 0.8 – 1.0 Mpa
Temperature: 320 °C
Fuel: Natural gas, coke oven gas, bio-gas，liquid propane gas, diesel, heavy oil, light oil, crude oil
Industries: Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries
Product Description

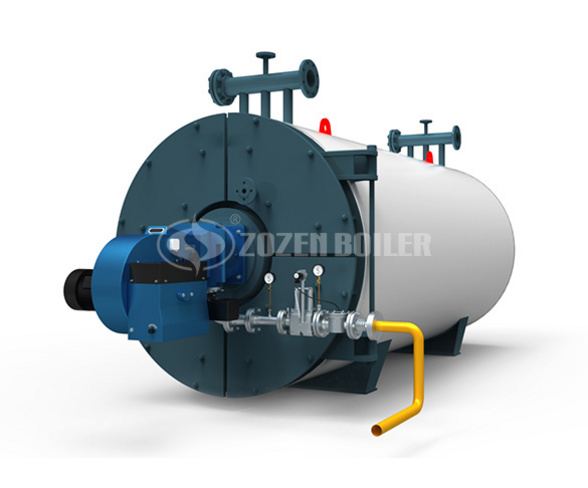

The YQ(Y)W series gas/oil thermal fluid heater is equipped with advanced combustion equipment and fully automated operation.This series of products whole factory, site installation, connected to the gas (oil) pipeline and electricity can be immediately put into use.
Technical Advantages
New Digital Manufacturing Process
The cutting of steel pipe is made by nc 3d laser cutting machine.The manufacture of disc tube adopts nc coil automatic production line to achieve the effect of forming.
Argon Arc Welding
Argon arc welding technology is adopted for tube butt joint, and real-time X-ray imaging of welding seam is carried out to strictly ensure product quality.
Low Cost
Good heat preservation material is used inside the boiler and stainless steel plate is used on the outer side to minimize heat loss and improve the working environment.
Simply Operation
The heater is assembled before leaving factory, easy to install, debug and operate.
Automatic operation, combustion, high level water tank liquid level, outlet temperature, flow automatic regulation, self-protection.
Product Parameters
| Model | Rated thermal power (KW) | Rated thermal power (x104kcal/h) | Design working temperature(≤℃) | Rated working pressure(MPa) | Thermal efficiency (≥%) | System installation power(KW) |
| YQW-700Q | 700 | 60 | 320 | 0.8 | 95 | 18 |
| YQW-1000Q | 1000 | 80 | 320 | 0.8 | 95 | 18 |
| YQW-1200 Y(Q) | 1200 | 100 | 320 | 0.8 | 95 | 35 |
| YQW-1400 Y(Q) | 1400 | 120 | 320 | 0.8 | 95 | 35 |
| YQW-1800 Y(Q) | 1800 | 160 | 320 | 0.8 | 95 | 56 |
| YQW-2400 Y(Q) | 2400 | 200 | 320 | 0.8 | 95 | 56 |
| YQW-2800 Y(Q) | 2800 | 240 | 320 | 0.8 | 95 | 66 |
| YQW-3500 Y(Q) | 3500 | 300 | 320 | 0.8 | 95 | 75 |
| YQW-4200Q | 4200 | 360 | 320 | 0.8 | 95 | 95 |
| YQW-4600Q | 4600 | 400 | 320 | 0.8 | 95 | 95 |
| YQW-6000Q | 6000 | 500 | 320 | 0.8 | 95 | 140 |
| YQW-7000Q | 7000 | 600 | 320 | 0.8 | 95 | 140 |
| YQW-8200Q | 8200 | 700 | 320 | 0.8 | 95 | 140 |
| YQW-9400Q | 9400 | 800 | 320 | 1 | 95 | 200 |
| YQW-10500Q | 10500 | 900 | 320 | 1 | 95 | 200 |
| YQW-12000Q | 12000 | 1000 | 320 | 1 | 95 | 240 |
| YQW-14000Q | 14000 | 1200 | 320 | 1 | 95 | 300 |
